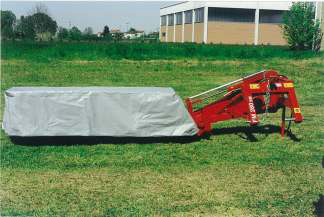

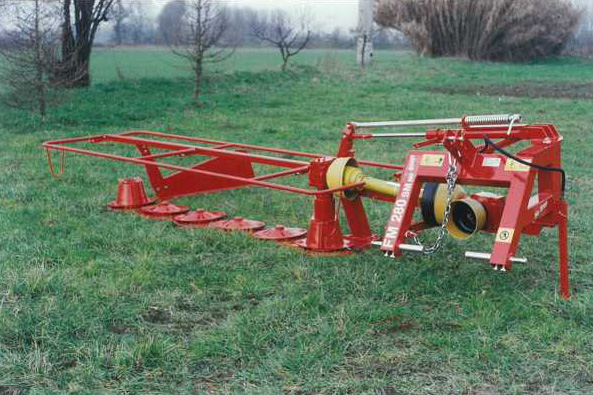

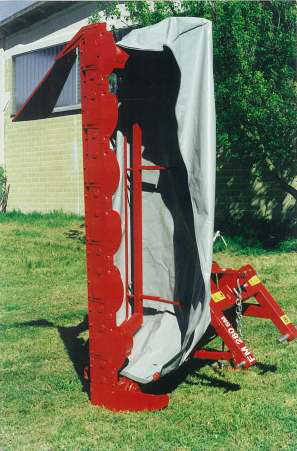

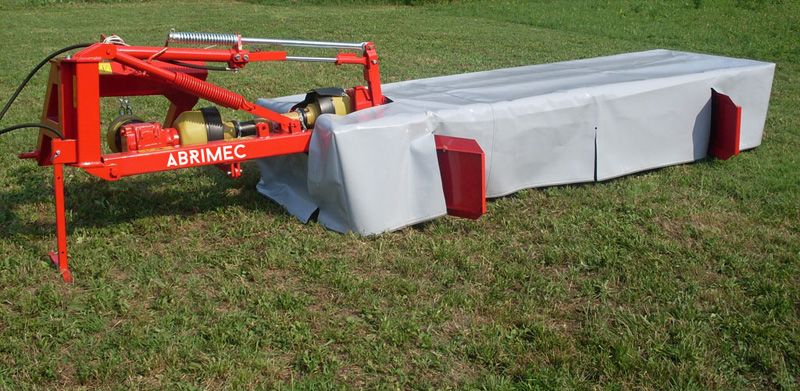

The FM 180/SM at 4 disks Rotary Disk Mower with a cutting width of 180 cm., is suited to the smaller farmer. The FM 230/SM at 5 disks Rotary Disk Mower with a cutting width of 225 cm., is suited to medium to large farmers. The FM 280/SM at 6 disks Rotary
Disk Mower with a cutting width of 270 cm., has been designed specifically for the evergrowing demand from farmers with large forage acreage for a reliable and high performance machine.
MAIN FEATURES
1 The unhooking-safety system is useful if hidden obstacles are hit accidentally while at work;

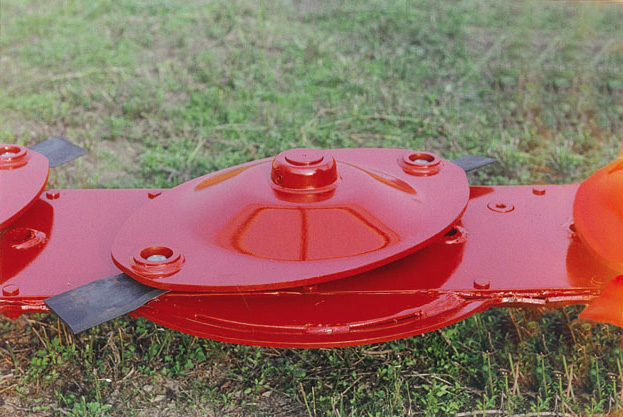

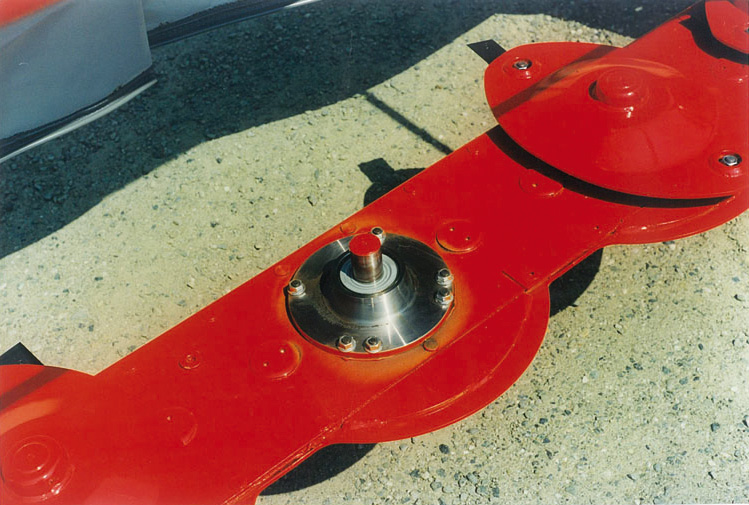

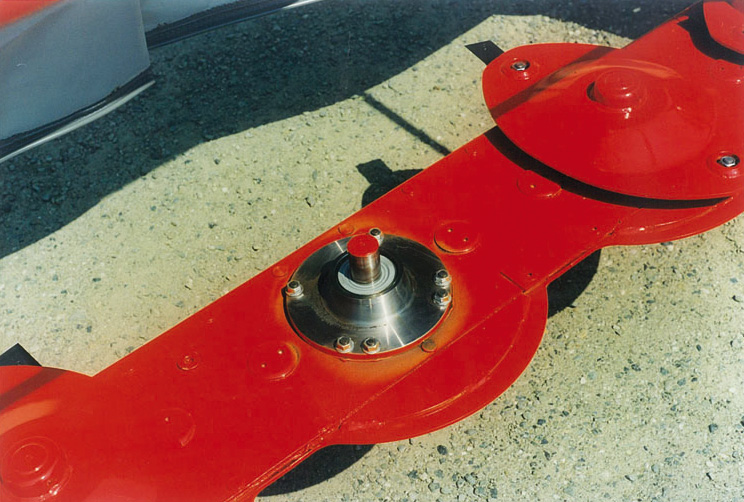

2 Disk carrier bearing bolted on the shell;

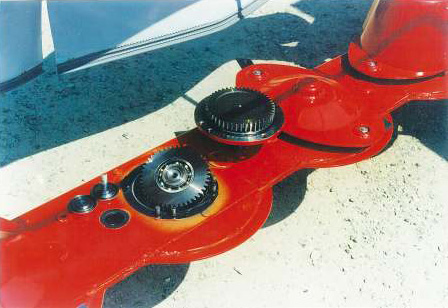

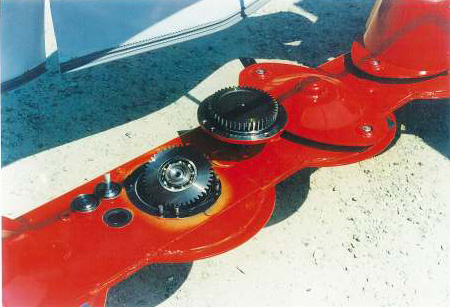

3 Extractable gear and bearing without dissassembling the shell;

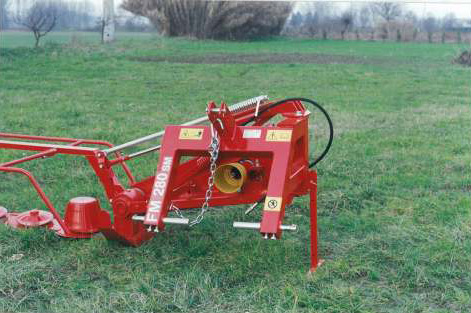

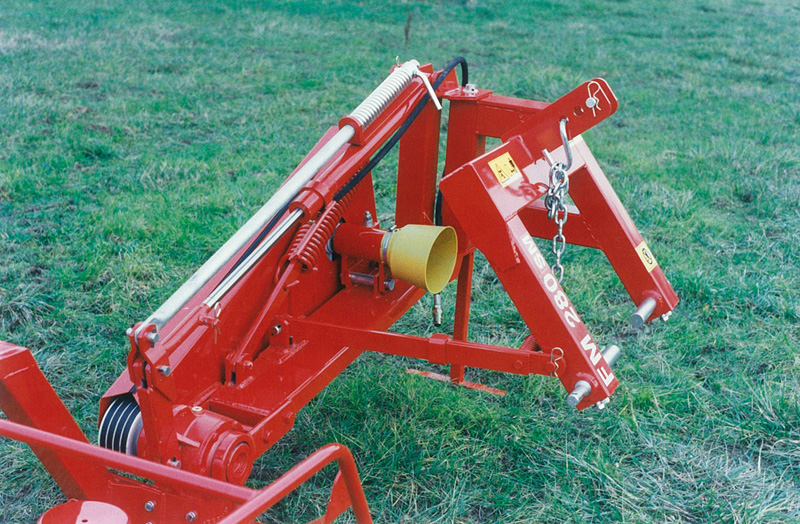

4 Hydraulic lifting with double shock-absorber for a better blade balancing. Frame with regulating pins for the tractor coupling.
Model |
FM 180/SM |
FM 230/SM |
FM 280/SM |
Weight |
430 |
480 |
525 |
Power required |
45 HP |
55 HP |
70 HP |
Working width |
180cm |
225cm |
270cm |
Number of disk |
4 |
5 |
6 |
Hourly production capacity |
2,5 ha/ora |
3 ha/ora |
3,5 ha/ora |
Number of the blades for disk |
2 |
2 |
2 |
PTO speed |
540 g/l' |
540 g/l' |
540 g/l' |
Rewlution speed of disk |
3100 g/l' |
3100 g/l' |
3100 g/l' |
 |
 |
 |
 |
 |
 |
 |
 |
 |

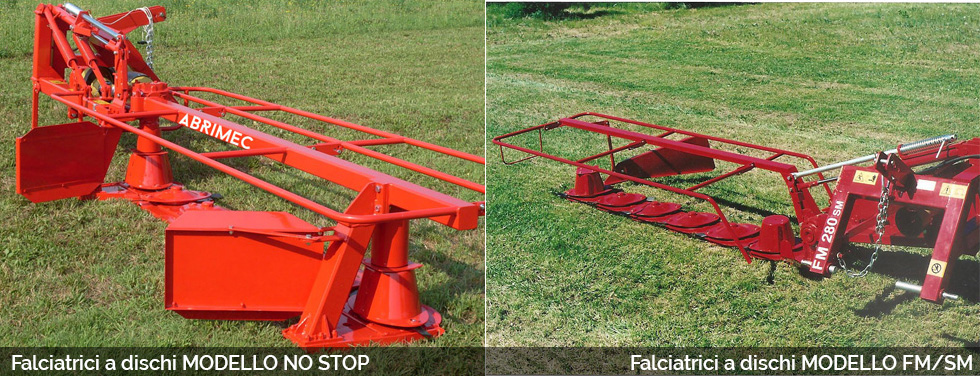

Rotary disk mowers MODEL NO STOP
The NO STOP system, with transměssion no longer with belds but completely by cardans, is based on the operation from the above of the first disk, improving the fodder flow and avoiding, to the operator, stops for flooding.
MAIN FEATURES
1 The unhooking-safety system is useful if hidden obstacles are hit accidentally while at work;

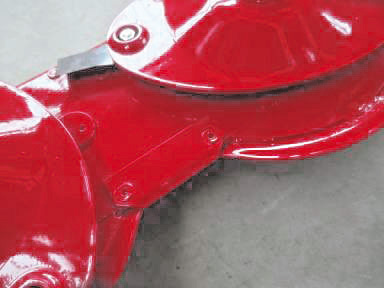

2 Disk carrier bearing bolted on the shell;
3 Extractable gear and bearing without dissassembling the shell;
4 Hydraulic lifting with double shock-absorber for a better blade balancing. Frame with regulating pins for the tractor coupling.
Model |
FM 180 |
FM 230 |
FM 280 |
FM 320 |
FM 360 |
Weight |
450 |
485 |
525 |
600 |
680 |
Power required |
45 |
55 |
70 |
44/60 |
52/70 |
Working width |
180cm |
225cm |
270cm |
306 cm |
347 cm |
Number of disk |
4 |
5 |
6 |
7 |
8 |
Hourly production capacity |
2,5 |
3 |
3,5 |
|
|
Number of the blades for disk |
2 |
2 |
2 |
|
|
PTO speed |
540 g/l' |
540 g/l' |
540 g/l' |
540 g/l' |
540 g/l' |
Rewlution speed of disk |
3100 g/l' |
3100 g/l' |
3100 g/l' |
3100 g/l' |
3100 g/l' |
 |
 |
 |
 |
 |
 |
 |
